Other Industries

Seamless circular unalloyed steel tubes subject to special requirements – EN 10220/DIN 1629

Lengths:

Random Lengths : 4 – 10 m

Fixed Lengths : the standard fixed length tolerance is –

Tolerances:

Outside Diameter : according to EN10305 or DIN 2391

Inside Diameter : ISO H8

Roughness I.D. : Ra max 0.4 microns.

Quality Keys:

Roughness of internal surface: 0.2um max.
Tolerance of ID: H7,H8 can be satisfied.
Straightness: 0.5mm/1000mm max.
Internal surface imperfection is not allowed.
External surface imperfection that doesn’t affect OD or W.T is allowed.
Hardness of internal surface should be of bigger value than that of external surface.
beveled ends for skived&roller burnished tubes because of the machining of tube ends before skiving&roller burnishing.

SPECIFICATION OF COLD ROLLED NON-ORIENTED ELECTRICAL STEEL

Grade	Thickness	Assumed Density	Max. core loss		Typical Core Loss (W/kg)		Induction	Min. Lamination factor
	Thickness	Assumed Density	W/kg		Typical Core Loss (W/kg)
	mm	( kg/dm3)	50Hz		50Hz
			1.0T	1.5T	1.0T	1.5T	5000A/m	%
B35A440	0.35	7.70	1.80	4.40	1.69	3.89	1.64	95
B35A550	0.35	7.75	2.25	5.50	1.70	3.90	1.66	95
B50A470	0.5	7.70	2.00	4.70	1.77	4.07	1.62	97
B50A600		7.75	2.60	6.00	1.85	4.28	1.65
B50A700		7.80	3.00	7.00	2.58	5.51	1.68
B50A800		7.80	3.60	8.00	2.68	5.84	1.68
B50A1000		7.85	4.40	10.00	2.98	6.51	1.69
B50A1300		7.85	5.80	13.00	3.25	7.11	1.69
B65A600	0.65	7.75	2.70	6.00	2.09	4.78	1.64	97
B65A700		7.75	3.15	7.00	2.31	5.25	1.65
B65A800		7.80	3.60	8.00	2.87	6.19	1.66
B65A1000		7.80	4.40	10.00	3.14	6.97	1.68
B65A1300		7.85	5.80	13.00	3.54	8.01	1.69
B65A1600		7.85	7.10	16.00	4.18	9.52	1.69

SPECIFICATION OF COLD ROLLED GRAIN ORIENTED ELECTRICAL STEEL

Product	Thickness mm	Grades	Theoretical Density (kg/Dm³)	Max. Core Loss (Kg/W) 50HZ 1.7T	Min. Magnetic Flux Density B800	Lamination Factor %
Hi-B	0.27	27QG100	0.765	1.00	1.89	95.0
		27QG110		1.10	1.89
		27QG120		1.20	1.89
Normal		27Q120		1.20	1.80
		27Q130		1.30	1.79
		27Q140		1.40	1.78
Hi-B	0.30	30QG100		1.00	1.89	95.5
		30QG105		1.05	1.89
		30QG110		1.10	1.89
		30QG120		1.20	1.89
Normal		30Q120		1.20	1.80
		30Q130		1.30	1.80
		30Q140		1.40	1.79
Normal	0.35	35Q135		1.35	1.80	96.0
		35Q145		1.45	1.80
		35Q155		1.55	1.78

High Tensile Steel Plate

Typical Applications

Heavy road vehicles: chassis, dumper bodies. Cranes construction: booms of mobile cranes. Structural steelworks: bridge components, components for offshore structures. Pressure vessels: fixed and transportable storage tanks, vessels. Power plants: penstocks, spiral cases. Mining equipment: roof supports etc.

Chemical Composition (Heat analysis in %)

C	Si	Mn	P	S	Cr	Mo	Ni	Al
0.20max.	0.80max.	1.70max.	0.020max.	0.015max.	1.50max.	0.70max.	1.50max.	0.015max.

In addition: Ti or/and V or/and Nb.

The manufacturer reserves the right to change the chemical composition.

Mechanical Properties

Plate thickness mm	Re MPa	Rm MPa	A %
≤ 50	690	770 – 940	14
> 50 ≤ 100	650	760 – 930	14
> 100	630	710 – 900	14

Notch Impact Energy

Steel Grade	Position of Samples	0°C	– 20°C	– 40°C	– 60°C
S690Q	Longitudinal Transverse	40 J 30 J	30 J 27 J
S690QL	Longitudinal Transverse	50 J 35 J	40 J 30 J	30 J 27 J
S690QL1	Longitudinal Transverse	60 J 40 J	50 J 35 J	40 J 30 J	30 J 27 J

WEAR RESISTANT STEEL

Wear resistant steel is used in areas where there is likely to be a high degree of abrasion or wear of the steel plate. Typical applications are in truck beds, attachments to diggers and earth movers and in processing applications in the mining industry.

The key quality for wear resistant steels is their hardness. We sell wear plate according to its hardness measured on the Brinnell Hardness Test – usually in 400HB and 500HB grades. If your specification is to the Rockwell Test we can also advise.

Steels with a high HB rating (Brinell Hardness) are intended for applications where wear or abrasion resistance is important. The benefit of using an abrasion resistant steel is that that the plant, machinery or constructions working life can be extended considerably. This can significantly improve the reliability, durability and safety of structures and equipment. It also helps to reduce the maintenance costs associated with wear and breakdown of plant.

400 HB steel is over 3 times harder than mild steel (120HB), but only a third as hard as stainless steel (1250HB). Example uses are for construction machinery, skips, bulldozers and excavators, buckets and conveyors. The steel is quenched which provides wear resistance; in order to improve hardness it may also be tempered. Lower HB’s generally provide good cold bending properties and good weldability. Weldability is not generally reduced as the hardness increases.

Wear resistant steels are not appropriate for use at temperatures over 250°C as the heat can cause changes to the material properties.

Testing is undertaken by firing 10mm steel or tungsten carbide ball at 29kN and the size of the resulting indentation is measured. Tests are carried out according to EN ISO 6506 or ASTM E10. The figures below are representative of 15mm thick 400HB and 500HB plates.
Values are typical and for general information purposes only.

Yields for 400HB steel are in the region of 1100 MPa with tensile strengths of about 1250 MPa. ABRASION RESISTANT HB 200/400/450/500 wear-resistant steel. has a hardness of approximately 200/400/450/500 HB. It combines high wear resistance with toughness and good weldability. Brand name supplied by us are of TISCRAL / SAILHARD/ JISCRAL/ LAS07 / HARDOX / DILLIDUR / DUROSTAT / ABRASO / XAR AND Other well know brands as per following specification.

HARDOX-400, HARDOX-450, HARDOX-500, RAEX-400, RAEX-450, RAEX-500, HB-400

FORA-400, FORA-450, FORA-500, ABRAZO-400, ABRAZO-450, ABRAZO-500, HB-450

NICRODUR-400, NICRODUR-450, NICRODUR-500, BRINAR-400, BRINAR-450, BRINAR-500

DILLIDUR-400V, DILLIDUR-450V, DILLIDUR-500V, AR-400, AR-450, AR-500, HB-500

S690 QL, MAXIL-690, NAXTRA-70, DILLIMAX-690T, SUPRALSIM-690, WELDOX-700E

SAILHARD, TISCRAL, JISCRAL, LAS07 Wear Resistant Steel Abrasion Resistant Steel

200BHN, 250BHN, 400BHN, 450BHN, 500BHN Wear Abrasion Resistant Steel

200HBW, 250HBW, 400HBW, 450HBW, 500HBW Abrasion Resistant Wear Steel

ARMOX-500, ARMOX-500T, RAMOR-500, ARMOUR for Ballistic Protection

ARMOR High Ballistic Steel MIL-A 46100 MIL-A12560 ARMOX 500T RAMOR 500

MIL A-46100 MIL A-12560 MIL-A-46100 MIL-A-12560 High Ballistic Steel Armor

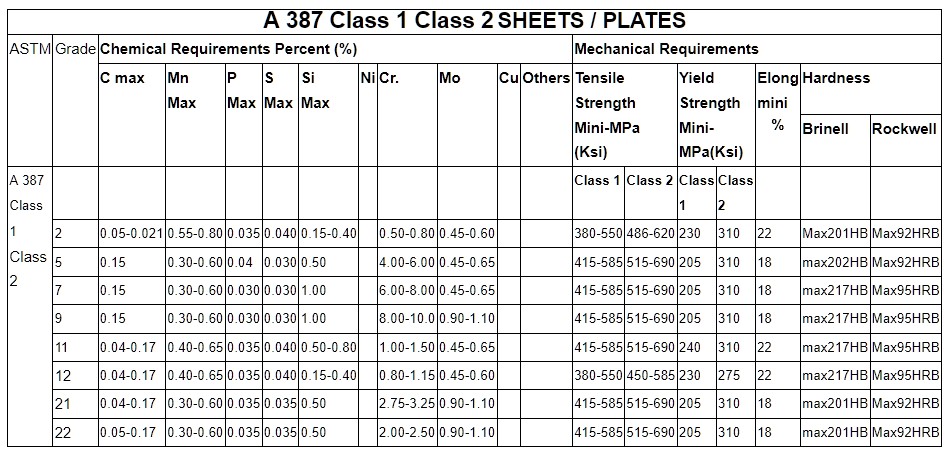

PRESSURE VESSEL STEEL

A pressure vessel is a container designed to hold liquids or gases at a pressure often different to the surrounding atmosphere. Due to the nature of the substances being stored, which in certain cases may be hazardous, it is imperative that the construction material meets the exacting safety standards required for the application.

We stock and supply a wide range of pressure vessel steel plate grades where safe operating pressure is critical.

BOILER STEEL PLATE

Our range of high quality boiler steel plate can be found in numerous worldwide industries. It is used primarily in the fabrication of boilers in industries such as shipbuilding, petrochemical and manufacturing.

Our boiler plates come in a variety of grades and thickness and are produced to a very high quality, designed to withstand the internal pressure in boilers and valves. Boiler steel plate is very popular due to its diversity of use and longevity.

Wearproof track shoe of excavator after heat treatment.

Graphite Electrode

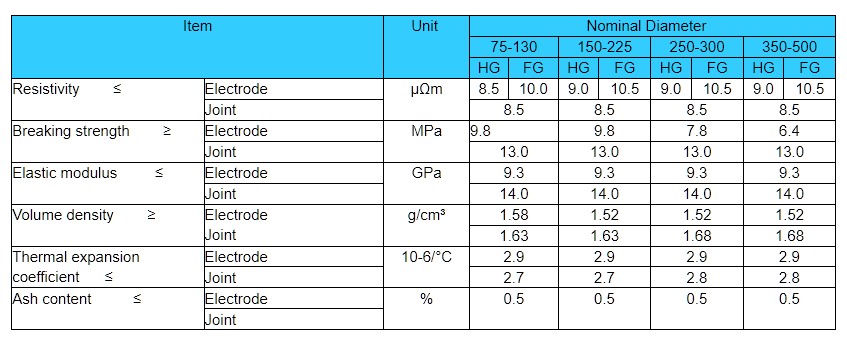

Physicochemical Indicators of General Power
